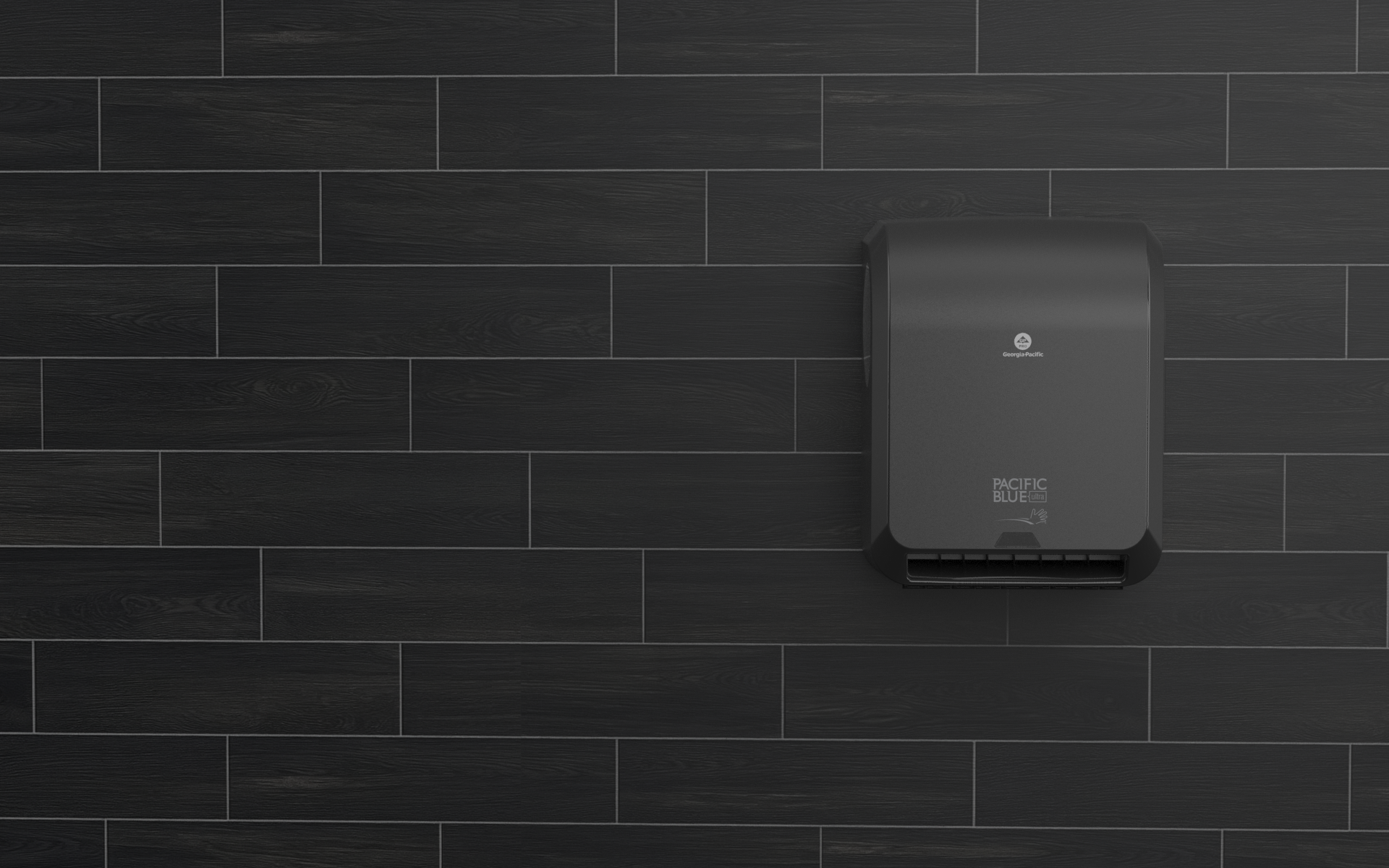

Wall Mounting Your Dispenser
Step 1
Position unit on wall so that the top is level. Use key to open front cover and mark screw locations where indicated with circles.
NOTE: Recommended distance from bottom of dispenser to the floor is 42”-44”. Mounting should comply with ADA guidelines.
Step 2
Secure unit to wall with four (4) anchored screws appropriate for the type of wall in locations previously marked.
Close cover. Installation is complete.
Wall Mounting with Bracket
Step 1
Position unit on wall so that the top is level. Use key to open front cover and mark screw locations where indicated with circles.
NOTE: Recommended distance from bottom of bracket to the floor is 46”-51”. Mounting should comply with ADA guidelines.
Step 2
Assemble two (2) mounting brackets (#54019 sold separately) by connecting the sides as shown.
For accessories or replacement components, please call: 1-866-HELLOGP (1-866-435-5647).
Step 3
Ensure that the arrows on the bracket are pointing upwards and the top is level.
Step 4
Use four (4) anchored screws appropriate for the type of wall in the keyhole slots indicated to secure bracket.
