Loading a New Roll
Step 1
Insert a new roll so that both core plugs fit into the upper roll holders and the paper feeds over the top of the roll.
Position end of towel under the blue transfer bar leaving a 1" flap as shown. Press sheet feed button.
Step 2
Close cover. Wave hand for towel to dispense.
Loading a Replacement Roll
Step 1
Relocate the partial roll from the upper roll holders to the lower roll holders while keeping the towel engaged with the feed rollers.
NOTE: Partial roll must be equal in size or smaller than the diameter of the roll holder (3") before relocating to the lower roll holders.
Step 2
Relocate the partial roll from the upper roll holders to the lower roll holders while keeping the towel engaged with the feed rollers.
NOTE: Partial roll must be equal in size or smaller than the diameter of the roll holder (3") before relocating to the lower roll holders.
Step 3
Close cover. The dispenser is now ready for operation.
Dispenser Settings
Towel Settings
Sheet Length
Sheet length may be adjusted to a short, medium, or long setting
Sheet Feed Button
Sheet feed button is used to advance a towel while loading
Sensor Range
Sensor range adjusts distance from hand to dispenser for motion mode dispensing
Time Delay
Time delay allows towels to dispense at variable time intervals after a towel is taken from dispenser
Motion Mode, Motion Mode + ECON, and Auto Supply
This Button toggles between Motion Mode, Motion Mode + ECON, and Auto Supply Mode.
Motion Mode
Motion mode requires the user to wave hand to dispense towel.
Auto Supply Mode
Auto supply automatically supplies a towel after a towel is taken.
Motion Mode + ECON
ECON mode activates auto supply mode after 3 hours of inactivity to conserve battery. The dispenser reverts to motion mode when a user takes a towel.
Dispenser Lights
These lights communicate different statuses that the dispenser is in.
Low Battery
Red light flashes slowly when battery is low. Light flashes quickly when battery is very low.
Paper Jam
All three lights flashing indicate paper jam.
Locked Settings
Dispenser settings are locked when Blue Lock Light is illuminated. To lock and unlock, press and hold the sheet length button for 3 seconds. Settings can be changed while the dispenser is unlocked.
This blue light also Illuminates when a towel is dispensed.

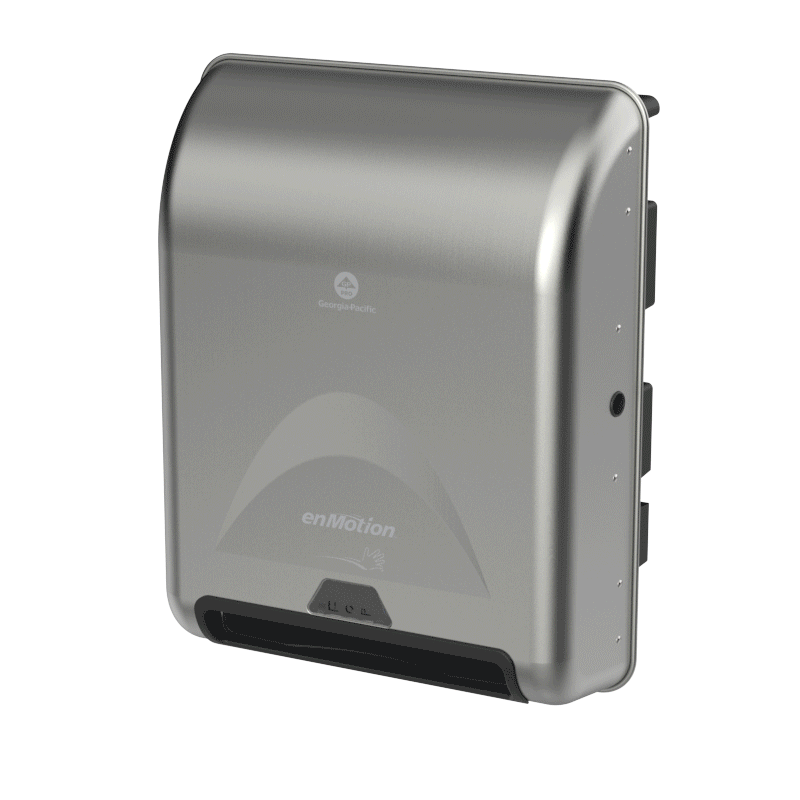

Battery Loading
Step 1
Use key to open front cover and remove towel roll(s) if needed.
Step 2
Open battery cover and remove depleted batteries. Insert four new D-cell alkaline batteries.
Step 3
Close battery cover, reload towel roll(s) and close cover.
Battery Care and Disposal
1.
Keep in original packaging until ready for use.
2.
Remove battery from device when not in use for an extended period of time.
3.
Never disassemble battery. Chemicals inside battery can be dangerous if swallowed or exposed to skin.
4.
Avoid mechanical or electrical abuse.
5.
Keep away from children.
6.
Battery is not designed to be recharged.
7.
Avoid extreme temperatures.
8.
Do not incinerate, since battery may explode at excessive temperatures.
9.
Do not dispose of large amounts of batteries as it creates a safety risk.
10.
Dispose of accumulated batteries in accordance with appropriate federal, state, and local regulations.
11.
Do not mix old and new batteries or nonrechargeable and rechargeable batteries.
12.
Rechargeable batteries are not recommended.
